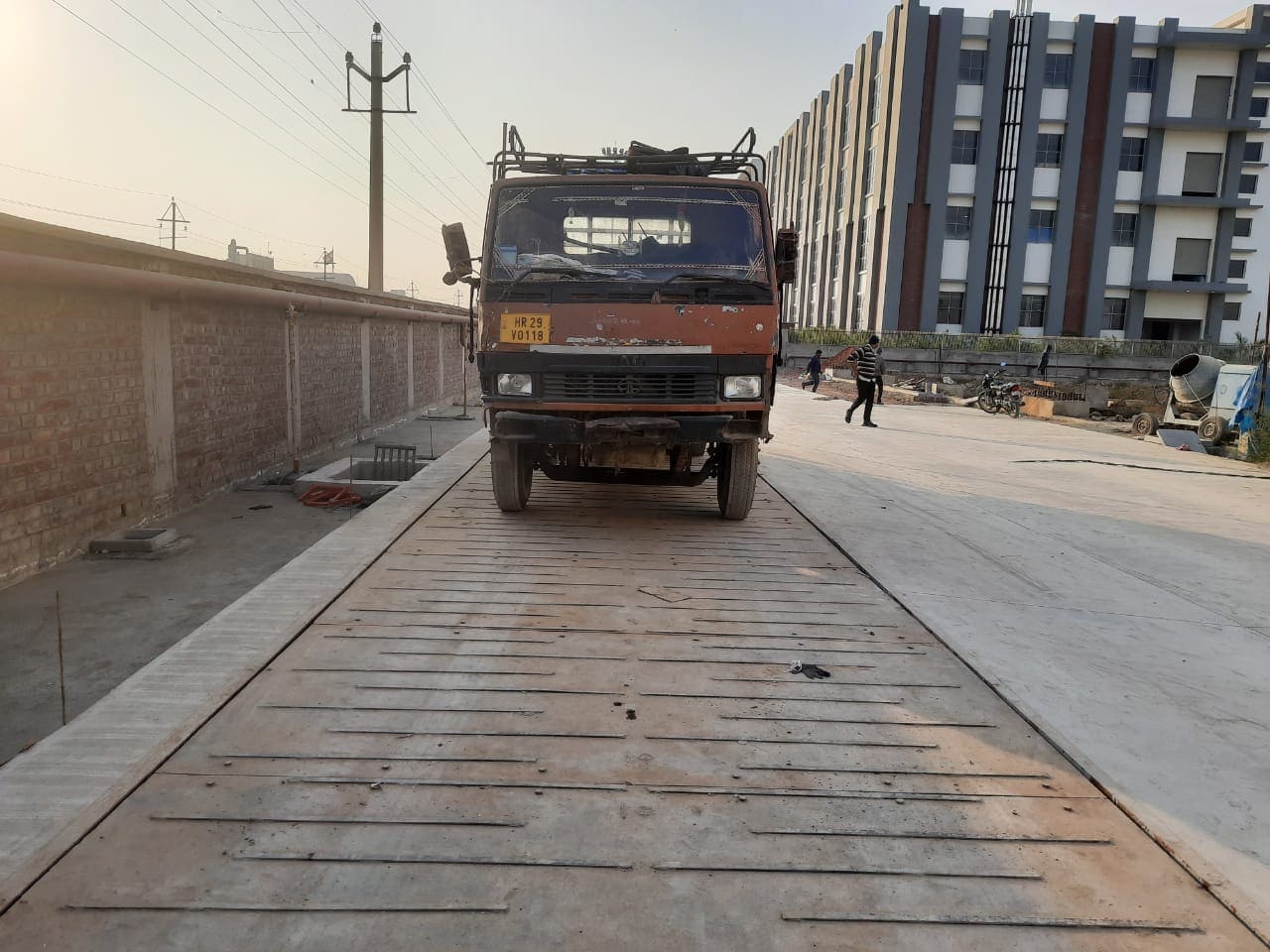

An Electro-Mechanical Weighbridge is a type of vehicle weighing system that combines mechanical levers with electronic components to measure weight. It represents a hybrid between traditional mechanical weighbridges and modern electronic systems, offering reasonable accuracy and cost efficiency, especially in areas where full electronic systems might be cost-prohibitive or where rugged mechanical systems are still preferred.

Key Components of an Electro-Mechanical Weighbridge:

Platform/Deck – Where the vehicle is placed for weighing; typically made of steel or concrete.

Mechanical Lever System – Transfers the vehicle’s weight to a central load-sensing point using a series of steel levers.

Load Cell or Mechanical Load Sensor – Converts the mechanical force into an electrical signal.

Digital Weight Indicator – Displays the calculated weight from the electrical signal.

Optional Printer/Computer Interface – For recording and reporting weights.

Advantages:

Durability – Mechanical parts are highly rugged and can endure harsh conditions.

Cost-Effective – Typically less expensive than fully electronic weighbridges.

Simple to Operate – Suitable for basic weighing needs in remote or under-resourced areas.

Hybrid Functionality – Allows gradual upgrade from fully mechanical to electronic systems.

Typical Applications:

Rural or remote locations

Older industrial facilities

Sites with basic weighing needs and budget constraints

Transitional installations upgrading from mechanical systems
